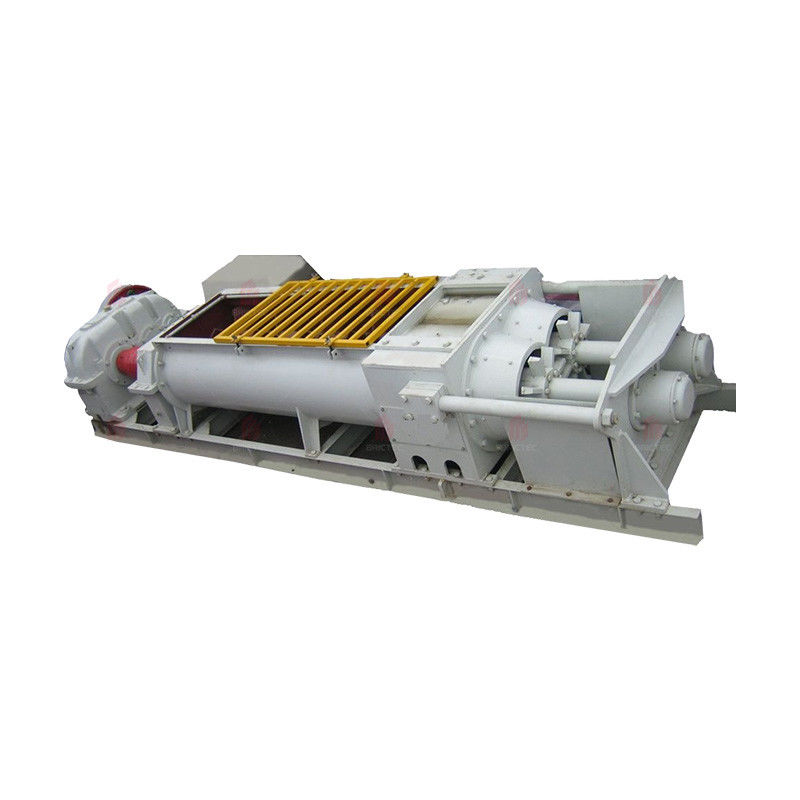

Brick Making Machinery Efficient Pug Extrusion and Kneading Functions Double Shaft Mixing Extruder

Name: Brick Making Machinery Efficient Pug Extrusion and Kneading Functions Double Shaft Mixing Extruder
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: SJJ360
Price: 81,982.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Model Number: SJJ360

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 60 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Brick Making Machinery Extruder, Double Shaft Mixing Extruder, Pug Extrusion Brick Making Machinery


Model:	SJJ360	Length Of Mixing Tank:	1800mm
Mixing Shaft Center Distance:	360mm	Auger Diameter:	φ500mm
Length Of Extrusion Tank:	600mm	Overall Dimension:	4400x2600x1050mm
Weight:	7.5t	Power:	75/90kW
Condition:	New	Automatic:	Yes
Method:	Mixng Extruder	Processing:	Raw Material Processing Machine
Raw Material:	Clay,Soil,Mud,Fly Ash	Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Double Shaft Mixing Extruder

Model:	SJJ360
Length Of Mixing Tank:	1800mm
Mixing Shaft Center Distance:	360mm
Auger Diameter:	φ500mm
Length Of Extrusion Tank:	600mm
Overall Dimension:	4400x2600x1050mm
Weight:	7.5t
Power:	75/90kW
Condition:	New
Automatic:	Yes
Method:	Mixng Extruder
Processing:	Raw Material Processing Machine
Raw Material:	Clay,Soil,Mud,Fly Ash
Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Double Shaft Mixing Extruder

Brick Making Machinery Efficient Pug Extrusion and Kneading Functions Double Shaft Mixing Extruder

Product Description

This equipment combines uniform mixing with efficient pug extrusion and kneading functions. A cutting device at the front end of the extruder enhances material mixing and homogenization, significantly improving the plasticity and formability of the materials. The mixing shaft is heat-treated for enhanced durability, while key wear-prone components are crafted from alloy wear-resistant materials, ensuring long-lasting performance and cost-efficiency.

Technical Parameters

Model	Length of mixing tank	Mixing shaft center distance	Auger diameter	Length of Extrusion tank	Overall dimension	Weight	Power
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(t)	(kW)
SJJ350	1800	350	φ400	600	4500x2100x900	5	37/45
SJJ360	1800	360	φ500	600	4400x2600x1050	7.5	75/90
SJJ420	2300	420	φ600	900	6300x2800x1150	12.5	132
