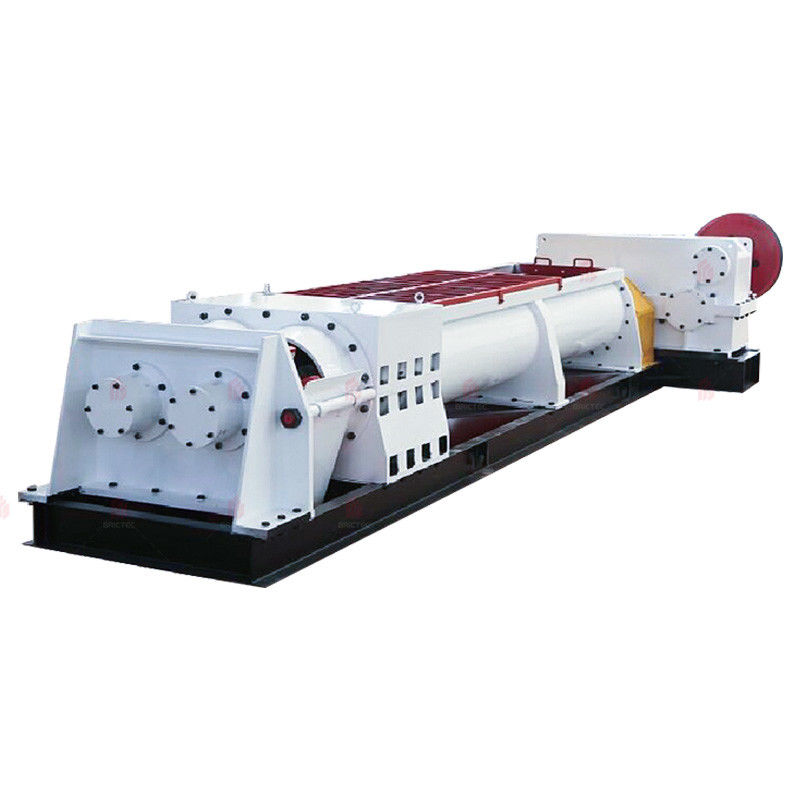

4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine

Name: 4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: SJJ350
Price: 81,982.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Model Number: SJJ350

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 60 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                4500 x 2100 x 900mm Double Shaft Mixing Extruder, Double Shaft Mixing Extruder 45kW, 37kW clay making machine


Model:	SJJ350	Length Of Mixing Tank:	1800mm
Mixing Shaft Center Distance:	350mm	Auger Diameter:	φ400mm
Length Of Extrusion Tank:	600mm	Overall Dimension:	4500x2100x900mm
Weight:	5t	Power:	37/45kW
Condition:	New	Automatic:	Yes
Method:	Mixng Extruder	Processing:	Raw Material Processing Machine
Raw Material:	Clay,Soil,Mud,Fly Ash	Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Double Shaft Mixing Extruder

Model:	SJJ350
Length Of Mixing Tank:	1800mm
Mixing Shaft Center Distance:	350mm
Auger Diameter:	φ400mm
Length Of Extrusion Tank:	600mm
Overall Dimension:	4500x2100x900mm
Weight:	5t
Power:	37/45kW
Condition:	New
Automatic:	Yes
Method:	Mixng Extruder
Processing:	Raw Material Processing Machine
Raw Material:	Clay,Soil,Mud,Fly Ash
Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Double Shaft Mixing Extruder

4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine

BRICTEC Raw Material Processing Equipment Double Shaft Mixing Extruder for Brick Making

Product Description

BRICTEC Extruder is capable of both uniform mixing and pug extruding and kneading function. The front end of the extruder is equipped with a cutting device to further mix and homogenize materials greatly, thus improve plasticity and formability of materials. As a state-of-the-art machine designed for high-volume production of clay bricks with precision and durability. Engineered for efficiency, this extruder ensures consistent brick quality, reduced energy consumption, and low maintenance, making it ideal for brick manufacturers seeking productivity and reliability.

4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine 0

Key Features

✔ High Output Capacity – Produces up to XX bricks per hour (customizable based on model).
✔ Advanced Extrusion Technology – Ensures uniform density and smooth brick formation.
✔ Robust Construction – Heavy-duty steel frame for long-lasting performance.
✔ Energy-Efficient Motor – Reduces operational costs while maintaining high productivity.
✔ Adjustable Extrusion Die – Allows for various brick sizes and shapes.
✔ Low Maintenance Design – Easy-to-clean components and minimal downtime.
✔ Vacuum System – Enhances clay compaction for stronger, crack-resistant bricks.

4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine 1

Technical Parameters

Model	Length of mixing tank	Mixing shaft center distance	Auger diameter	Length of Extrusion tank	Overall dimension	Weight	Power
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(t)	(kW)
SJJ350	1800	350	φ400	600	4500x2100x900	5	37/45
SJJ360	1800	360	φ500	600	4400x2600x1050	7.5	75/90
SJJ420	2300	420	φ600	900	6300x2800x1150	12.5	132

4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine 2

Applications

Solid & hollow clay bricks
Pavers & roofing tiles
Custom-shaped bricks for architectural use

4500 X 2100 X 900mm Double Shaft Mixing Extruder 45kW Clay Making Machine 3

Why Choose BRICTEC?

✅ Proven Reliability – Trusted by brick manufacturers worldwide.
✅ Custom Solutions – Tailored configurations for specific production needs.
✅ Global Support – Comprehensive after-sales service and spare parts availability.

Request a Quote

Interested in the BRICTEC Brick Extruder? Contact our sales team for pricing and customization options!
