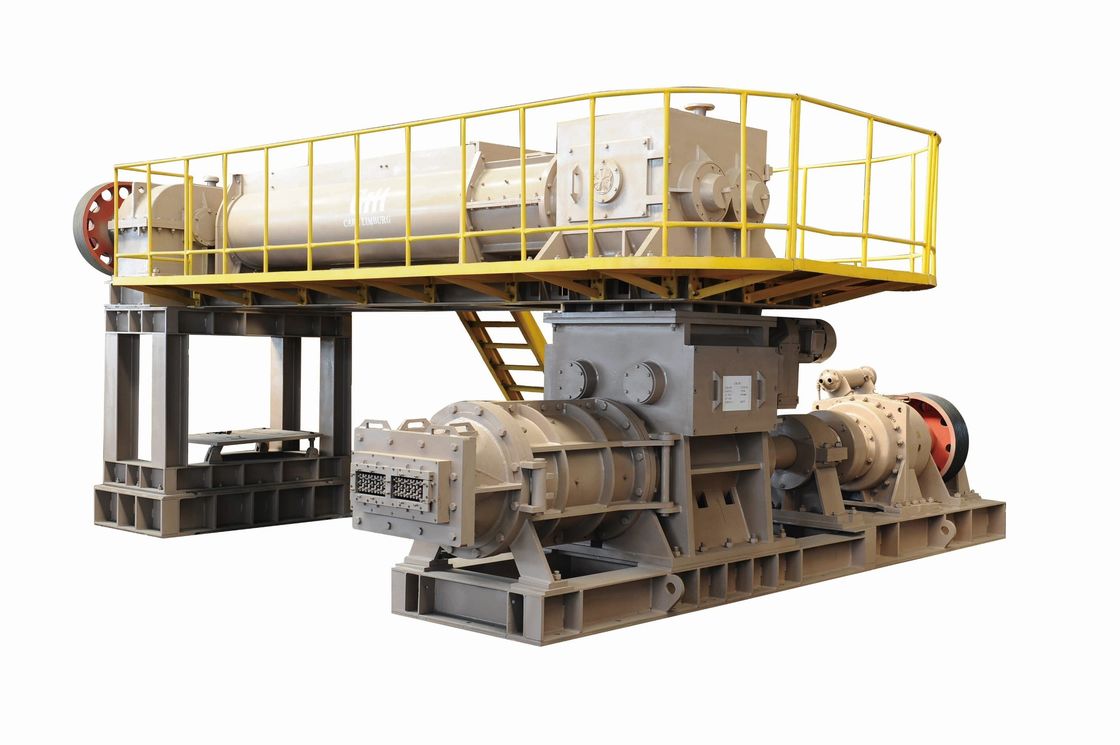

Name: VP45 Medium Capacity 7-20m³/m Clay Brick Making Machinery Extruder
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: VP45
Price: 154,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Model Number: VP45

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 60 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                20m³/m Brick Making Machinery Extruder, Medium Capacity Brick Making Machinery Extruder, Clay Brick Making Machinery Extruder


Maximum Extrusion Pressure:	3.5Mpa	Capacity:	7-20m³/m
Overall Dimension:	6000x2500x2200mm	Weight:	11.5t
Condition:	New	Automatic:	Yes
Method:	Vacuum Extruder	Processing:	Brick Molding Machine
Raw Material:	Clay,Soil,Mud,Fly Ash	Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Vacuum Extruder

Maximum Extrusion Pressure:	3.5Mpa
Capacity:	7-20m³/m
Overall Dimension:	6000x2500x2200mm
Weight:	11.5t
Condition:	New
Automatic:	Yes
Method:	Vacuum Extruder
Processing:	Brick Molding Machine
Raw Material:	Clay,Soil,Mud,Fly Ash
Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Vacuum Extruder

VP45 Medium Capacity 7-20m³/m Clay Brick Making Machinery Extruder

Technical Paramters

Model	Upper stage		Lower stage		Maximum extrusion pressure (Mpa)	Capacity	Overall dimension (mm)	Weight
	Auger diameter	Power (kW)	Auger diameter	Power		(m³/m)		(t)
	(mm)	Power (kW)	(mm)	(kW)
VP-40/40-S	φ400	30-45	φ400	55-75	3.5	7-20	6200x2400x2100	10.5
VP-45/40-S	φ400	30-55	φ450/400	75-90	3.5	7-20	6000x2500x2200	11.5
VP-50/50-S	φ500	55-90	φ500	90-160	3.5	20-40	5700x4500x2600	14
VP-56/45-S	φ400	45-55	φ560/450	75-90	4.5	7-35	5700x2400x2600	14.5
VP-56/50-S	φ500	55-90	φ560/500	75-132	3.5	15-40	7000x5500x2600	15
VP-60/60-S	φ500	55-90	φ580	132-160	3	25-45	7400x5500x2900	27
