107.15kW Automatic Loading and Unloading System Direct Setting Process Double Grouping Robot

Name: 107.15kW Automatic Loading and Unloading System Direct Setting Process Double Grouping Robot
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: RHS-15
Price: 81,982.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Model Number: RHS-15

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 60 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                107.15kW Automatic Loading And Unloading System, 2m3/min Automatic Loading And Unloading System, ODM Automatic Direct Setting Process


Model:	RHS-15	Form:	Robot With Double Grouping
Power:	107.15kW	Gas Consumption:	2m³/min
Condition:	New	Automatic:	Yes
Method:	Loading And Unloading System	Processing:	Loading And Unloading System
Raw Material:	Clay,Soil,Mud,Fly Ash	Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Direct Setting Process Double Grouping Robot

Model:	RHS-15
Form:	Robot With Double Grouping
Power:	107.15kW
Gas Consumption:	2m³/min
Condition:	New
Automatic:	Yes
Method:	Loading And Unloading System
Processing:	Loading And Unloading System
Raw Material:	Clay,Soil,Mud,Fly Ash
Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Direct Setting Process Double Grouping Robot

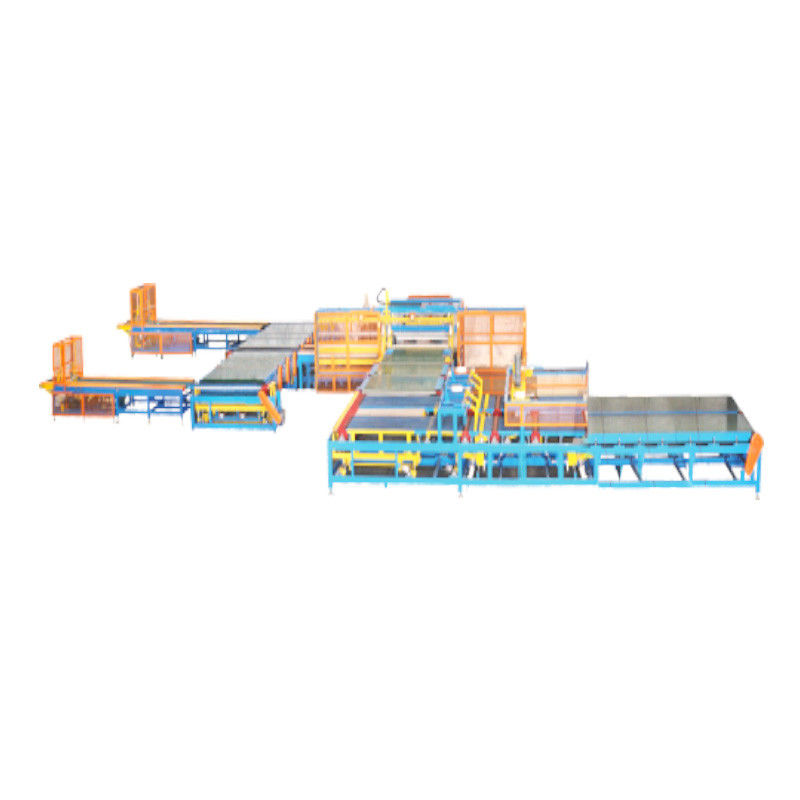

107.15kW Automatic Loading and Unloading System Direct Setting Process Double Grouping Robot

BRICTEC Automatic Direct Setting Process with Double Grouping Robot of Brick and Tile Manufacturing Industry

Product Description

The automatic direct setting process of our company is derived from the successful experience and innovation of Italian COSMEC company in the brick and tile manufacturing industry for over 40 years. It is composed of strip cutting, block cutting, grouping, conveying, setting and other systems. The whole process is controlled by high-end PLC, and the control panel adopts HMI touching screen to complete data setting and automatic operation.

The system has been widely used in domestic market after over a decades of development. At present, it has formed an advanced grouping system which can complete the setting of multiple brick types, while the non-grouping system can ensure the high quality and high yield of single type. The robot is flexible, and the setting machine is steady. Our excellent technical team can tailor the brick making process according to your needs, and design the most suitable automatic system for you.

Features
1. Servo cutter with precise length, vertical cutting surface, fast speed and low vibration;
2. The cutter is equipped with double frames for wire replacement and chamfering function;
3. The block collector has waste materials disposal function;
4. Easy to switch between vertical setting and horizontal setting;
5. Conventional clamps and splitting clamps can be used to realize different settings;
6. Multiple solutions correspond to different brick types;
7. HMI is easy to operate.

Technical Parameters

Model	Form	Power	Gas consumption
Model	Form	(kW)	(m3/min)
RHS-15	Robot with double grouping	107.15	2
