Name: Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: QPJ-I
Price: 28.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brictec

Certification: CE ISO

Model Number: QPJ-I

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 24,000—USD 32,000

Packaging Details: Customized

Delivery Time: 80 days

Payment Terms: L/C, T/T

Supply Ability: Customized

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                clay brick cutter machine with VFD, twin-screw brick cutting machine, adjustable wire-cut brick cutter


Max Cutting Width:	1200 Mm	Automatic:	Yes
Cutting Frequency:	12-45times/min (VFD Adjustable)	Warranty:	1 Year
Processing:	Cutting Setting Conveying System	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Field Installation,commissioning And Training
Voltage:	380V,220V,220/240/380/440V,it Depends On Exact Conditions,Adjustable	Installed Power:	11 Kw

Max Cutting Width:	1200 Mm
Automatic:	Yes
Cutting Frequency:	12-45times/min (VFD Adjustable)
Warranty:	1 Year
Processing:	Cutting Setting Conveying System
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Field Installation,commissioning And Training
Voltage:	380V,220V,220/240/380/440V,it Depends On Exact Conditions,Adjustable
Installed Power:	11 Kw

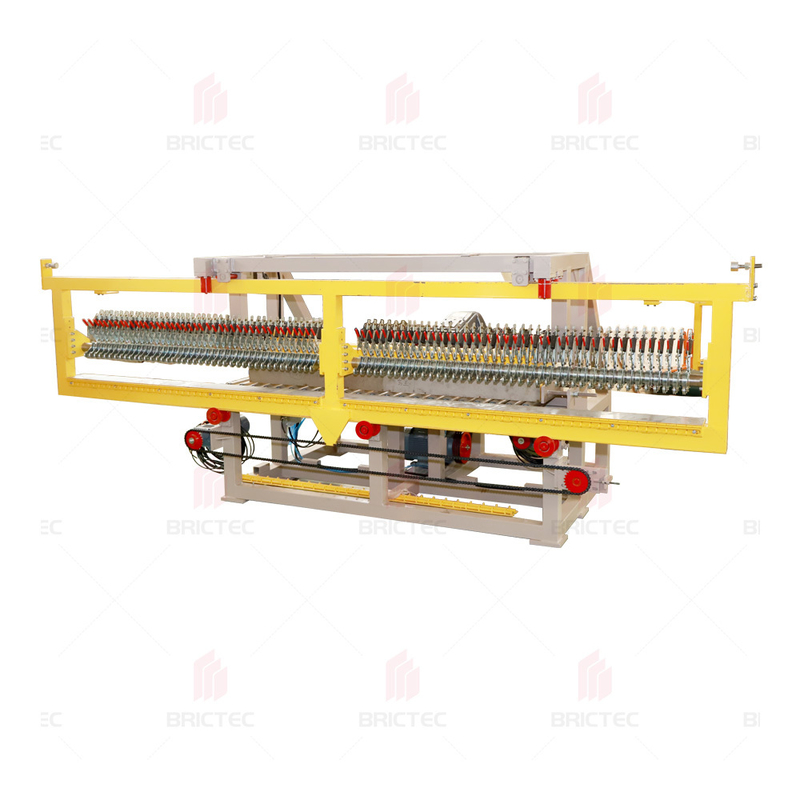

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

Equipment Introduction

The twin-screw frame wire-cutter is a wire-cutting device driven by two synchronized ball screws, moving the cutting frame vertically to slice wet clay, shale or coal-gangue bricks to exact length.

Application in Clay Brick Plant

Positioned downstream of the extruder, it converts the continuous clay column into uniform brick blanks before stacking, drying and firing.

Function

The high-rigidity twin-screw drive ensures all cutting wires move simultaneously at identical speed and position, giving synchronous, distortion-free cuts.

Comparison with Synchronous Cutter

Item	Twin-Screw Frame	Synchronous Cutter
Drive	Mechanical twin screws	Servo motor + linkage
Wire qty	Up to 20 wires, single break replaceable	Usually fixed set
Wire-break protection	Single break continues running	Requires full stop
Maintenance	Modular quick change	Complex linkage adjustment

Cutting Advantages

If one wire breaks, the rest keep working - non-stop production
Cutting accuracy ≤ ±1 mm with clean edges
Modular frame allows full wire set change in 10 min
Wear-resistant screws last ≥30,000 h maintenance-free

Key Specifications

Max cutting width: 1,200 mm
Cutting frequency: 15-45 cuts/min (VFD adjustable)
Installed power: 11 kW
Brick types: solid, perforated, hollow and pavers
