Equipment Introduction: block machine brick machine

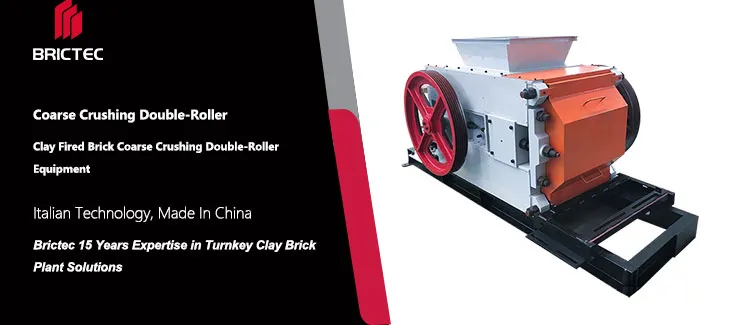

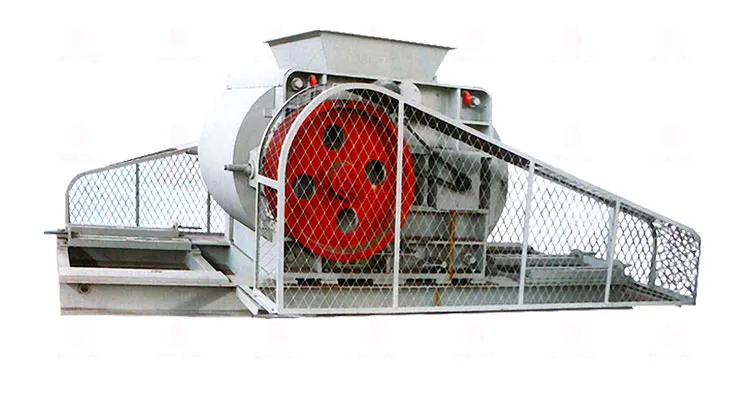

Clay Fired Brick Coarse Crushing Double-Roller Equipment is a specialized pre-processing device for the production of clay fired bricks. It is primarily used to coarsely crush large lumps of raw materials such as clay, shale, and coal gangue, bringing them to a particle size suitable for subsequent mixing and forming processes. The equipment achieves this through shearing and compressive crushing by two counter-rotating rollers, efficiently reducing the raw materials to the desired particle size range. With a simple structure, easy operation, and low maintenance costs, it is an essential piece of equipment in modern brick factories. block machine brick machine
Equipment Characteristics:
1. High Crushing Efficiency: block machine brick machine
The double-roller equipment can quickly reduce large lumps of raw materials to smaller sizes, meeting the requirements of subsequent processes.
2. Adjustable Crushing Size:
By adjusting the spacing between the rollers, the size of the crushed particles can be flexibly controlled.
3. Adaptability to Various Materials:
Suitable for various types of raw materials with different hardness levels, such as clay, shale, and coal gangue.
4. Low Energy Consumption:
The equipment operates with low energy consumption, helping to reduce production costs. block machine brick machine
Main Technical Parameters:
| Model |
Capacity(t/h) |
Roller size(mm) |
Input size(mm) |
Output size(mm) |
Dimension(mm) |
Weight(t) |
Power(kW) |
| PGS800×600 |
20-40 |
Φ800×600 |
≤50 |
≤25 |
5700×1600×1600 |
7 |
30+37 |
| PGS1000×800 |
30-50 |
Φ1000×800 |
≤50 |
≤25 |
5700×1600×1600 |
11.5 |
55+75 |
| PGS1200×1000 |
35-60 |
Φ1200×1000 |
≤50 |
≤25 |
5700×1600×1600 |
20.5 |
75+110 |
Equipment Advantages:
1. Simple Structure:
The equipment has a compact structure, making it easy to install and maintain. block machine brick machine
2. Easy Operation:
User-friendly interface, easy to operate, reducing the training time for operators. block machine brick machine
3. High Durability:
Manufactured with high-quality materials to ensure long-term stable operation. block machine brick machine
4. Low Maintenance Cost:
Simple design with fewer wear parts, reducing maintenance costs.
Equipment Structure:
1. Roller System:
The two counter-rotating rollers are the core components of the equipment, responsible for shearing and compressive crushing of the raw materials.
2. Drive System:
Equipped with high-efficiency motors and reducers to provide stable power output to the rollers.
3. Adjustment Device:
Used to adjust the spacing between the rollers to control the crushing size. block machine brick machine
4. Frame:A robust steel frame ensures the stability of the equipment during operation.
Application Scenarios
1. Clay Fired Brick Production:
Primarily used in the pre-processing stage of clay fired brick production to crush large lumps of raw materials to a suitable size for mixing and forming. block machine brick machine block machine brick machine
2. Building Materials Industry:
Suitable for the production of other building materials, such as shale bricks and coal gangue bricks. block machine brick machine
3. Mining Industry:
Can be used to crush hard materials like ore, providing suitable particle sizes for subsequent processing.
