Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing

Product Details

Place of Origin: China

Brand Name: Brictec

Certification: CE ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 2,020

Packaging Details: Customized

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: Customized

Get Best Price

Product Details

Product Description

Highlight:

Voltage:	220v/380v,380V,220V/50HZ,380V 50Hz Three Phase (Optional)	Warranty:	1 Year
Type:	Dryer	Product Name:	Cyclone Separator
Material:	Stainless Steel	Name:	Dryer
Color:	Customized	Usage:	Reduce Material's Moisture
Installation:	Engineer Guide	Feature:	High Efficiency

Voltage:	220v/380v,380V,220V/50HZ,380V 50Hz Three Phase (Optional)
Warranty:	1 Year
Type:	Dryer
Product Name:	Cyclone Separator
Material:	Stainless Steel
Name:	Dryer
Color:	Customized
Usage:	Reduce Material's Moisture
Installation:	Engineer Guide
Feature:	High Efficiency

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing

Product Description

Introduction to Cyclone Separators:
A cyclone separator is a device that uses centrifugal force to separate solid particles from a gas stream. It is widely used in industrial production, especially in situations involving dusty gas streams.
The working principle of a cyclone separator is based on the rotational movement of the airflow. When dusty gas enters the cyclone, the airflow is forced to move in a spiral along the cylindrical wall. Solid particles are thrown against the wall due to inertia and settle down under the action of gravity, achieving gas-solid separation.
Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 1

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 1

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 2

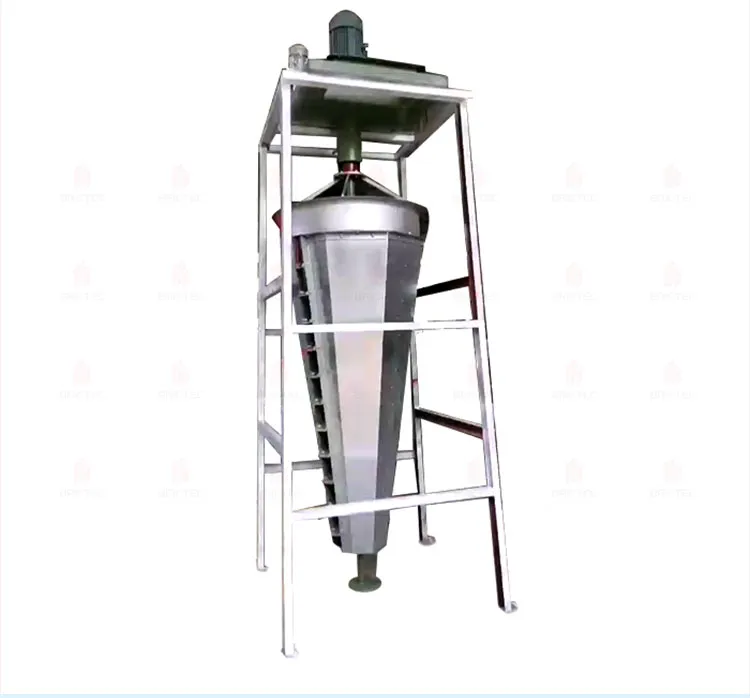

Structure of Cyclone Separators
A cyclone separator typically consists of the following main parts:
1. The dusty gas enters the cyclone through the inlet duct.
2. The airflow rotates inside the cylindrical section.
3. The airflow decelerates in the conical section, and solid particles settle down under gravity.
4. The cleaned gas is discharged through the outlet duct.
5. The separated solid particles are collected in the hopper.
Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 3

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 3

Working Principle of Cyclone Separators
1. The working principle of a cyclone separator is based on the combined action of centrifugal force and gravity.
2. Dusty gas enters the cylindrical section of the cyclone through the inlet duct in a tangential direction.
3. The airflow rotates at high speed inside the cylindrical section, and solid particles are thrown against the wall due to centrifugal force.
4. In the conical section, the airflow decelerates, and solid particles settle down into the hopper under gravity.
5. The cleaned gas is discharged through the outlet duct.
Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 4

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 4

Advantages of Cyclone Separators
Cyclone separators have the following advantages:
1. Simple structure: Cyclones are compact and have no moving parts, resulting in low maintenance costs.
2. High capacity: They can handle large volumes of dusty gas.
3. High separation efficiency: For larger dust particles, the separation efficiency can exceed 90%.
4. Strong adaptability: They are suitable for a variety of industrial dusts and gases and can operate over a wide temperature range.
Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 5

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 5

Applications of Cyclone Separators:
Cyclone separators are widely used in the following fields:
1.Building materials industry: Such as brick plants and cement plants, for dust separation to protect equipment and reduce environmental pollution.
2.Chemical industry: For separating solid particles generated during chemical reactions.
3.Food processing industry: For separating dust generated during food processing to ensure product quality.
4.Pharmaceutical industry: For separating dust during drug production to ensure drug purity.

Maintenance and Care of Cyclone Separators
To ensure the efficient operation and long service life of cyclone separators, regular maintenance and care are necessary:
1.Regular cleaning: Clean the hopper regularly to prevent blockages.
2.Check for leaks: Inspect the cyclone for any leaks to ensure airtightness.
3.Inspect for wear: Check the wear of the cylindrical and conical sections and repair or replace worn parts in a timely manner.
4.Maintain inlet and outlet ducts: Ensure that the inlet and outlet ducts are unobstructed.
5.Inspect support structure: Ensure that the support structure of the cyclone is sturdy and reliable.
Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 6

Drying Machine Of Cyclone Separator For Clay Brick Drying In Processing 6
