Customizable Rotary Screen Feeder for Your Specific Requirements

Name: Customizable Rotary Screen Feeder for Your Specific Requirements
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: DGC1000/DGC1500/DGC1900
Price: 42,881.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Certification: CE, ISO

Model Number: DGC1000/DGC1500/DGC1900

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 26180-59583 US$/SET

Packaging Details: 4200× 3200× 1600 mm

Delivery Time: 60

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                Rotary Screen Feeder, Customizable Rotary Screen Feeder, Specific Requirements Rotary Screen Feeder


Customizable Rotary Screen Feeder for Your Specific Requirements

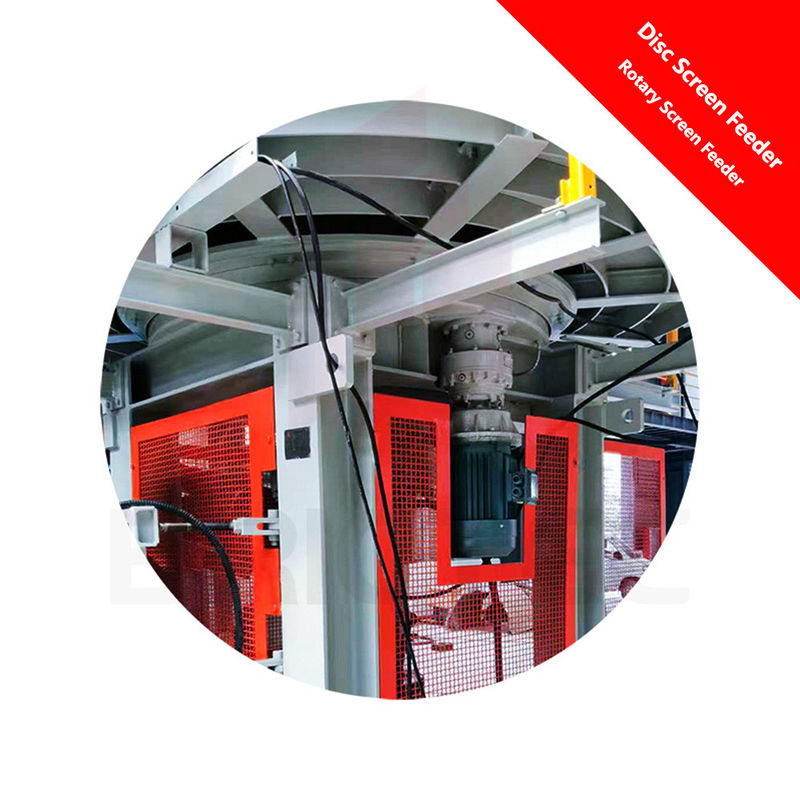

Customizable Rotary Screen Feeder for Your Specific Requirements 0

Equipment introduction

A rotary screen feeder is an integrated feeding system that combines screening and metered dosing functions. It consists of a rotating disc with adjustable scrapers and an integrated screen mesh (typically 3-10mm for clay bricks), ensuring homogeneous material flow to extruders or mixers while removing oversized particles.

Customizable Rotary Screen Feeder for Your Specific Requirements 1

Core Equipment for Raw Material Pre-processing
In the clay sintered brick production line, the rotary screen feeder is positioned between the raw material crushing system and the mixing/extrusion section, performing the following critical functions:

Screening & Impurity Removal:
Filters out stones, plant roots, and other impurities from clay through a rotating screen (typical aperture: 3-10mm), preventing damage to downstream equipment (e.g., vacuum extruder screws).

Uniform Feeding:
Delivers clay at a consistent flow rate to the next process via an adjustable-speed rotating disc (speed: 2-15 rpm), ensuring stable input for mixers or extruders.

Moisture Regulation:
Advanced models integrate spray systems to uniformly adjust water content during feeding (±2% moisture control range).

Customizable Rotary Screen Feeder for Your Specific Requirements 2

Parameter table:

Model	Capacity	Disc Screen Diameter	Discharge Tray Diameter	Dimension	Weight	Power
GDC1000	10-35m³/h	φ1000mm	φ2000mm	240020001500	5.5t	22+3+1.5kW
GDC1500	30-55m³/h	φ1500mm	φ3000mm	240020001500	8.5t	45+4+1.5kW
GDC1900	50-70m³/h	φ1900mm	φ2900mm	240020001500	12t	90+5.5+3kW

Impact on Finished Product Quality

Dimensional Consistency:
The uniform particle size of screened raw materials reduces brick cracking (can decrease defect rate by 3-5%).

Combustion Efficiency:
Purified clay enables more uniform kiln sintering (reducing energy consumption by 8-10%).

Equipment Protection:
Prevents large hard particles from entering the extruder, extending screw life by 2-3 times.

Customizable Rotary Screen Feeder for Your Specific Requirements 3

Typical Clay Brick Production Line Example:

[Raw Material Yard] → [Primary Crusher] → Rotary Screen Feeder → [Twin-Shaft Mixer] → [Vacuum Extruder] → [Brick Cutter]

Customizable Rotary Screen Feeder for Your Specific Requirements 4

Customizable Rotary Screen Feeder for Your Specific Requirements 5
