BRICTEC Brick Raw Material Preparation Equipment Soft Material Crushing Industrial Roller Mill
Fine Roller Mill for Soft Material Crushing
BRICTEC Professional Raw Material Preparation Equipment
Product Description

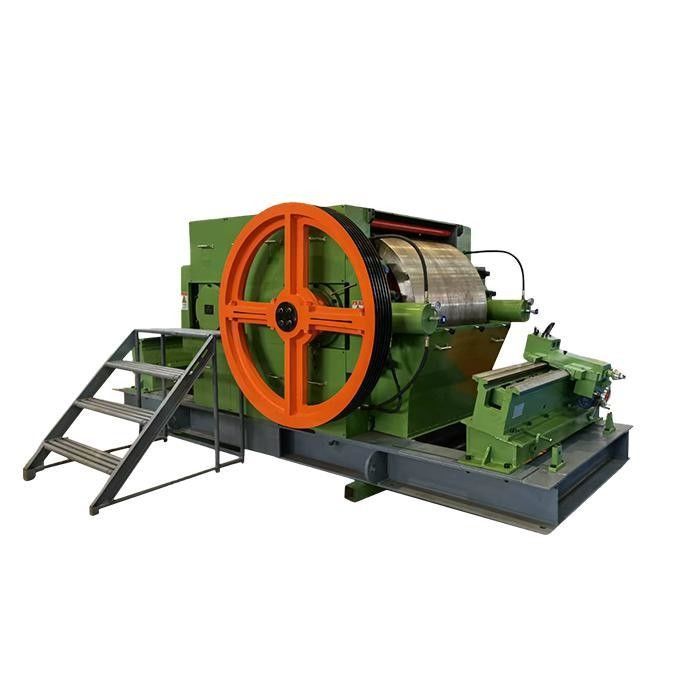

The BRICTEC Roll Crusher is a high-performance raw material preparation machine designed for crushing and homogenizing ceramic, building materials, refractory materials industry and others. Engineered for durability, efficiency, and low maintenance, our roll crusher ensures optimal particle size reduction, enhancing the quality and consistency of your brick production process. It has following features:
-Two rollers differential operation.
-Roller gap allowance is up to 2.0mm.
-The extrusion force can be adjusted within the pressure limit range, subjecting to the material condition.
-The solid steel structure ensures the safe and stable operation of the equipment to the greatest extent.
-The roller are fixed on the bearing of a customized center calibration device, ensuring the center adjustment of the equipment.
-One shaft has two supporting frames, which is flexible to be adjusted and fixed based on gap range, the other is adjusted by two hydraulic pistons and is equipped with an accumulator.
-By using fixed internal support, the parallelism of the roller gap and the roller can be strictly guaranteed.
-Equipped with a scrapper and adopts hydraulic control, easy to remove or replace the roller
-Has sturdy and heavy base support
-Lathe installed on the frame for periodically treatment of the roller.
Applications
-
Brick & Tile Manufacturing – Prepares raw materials for extrusion and molding.
-
Clay & Shale Processing – Crushes and refines materials for consistent brick quality.
-
Coal Gangue & Waste Recycling – Efficiently processes industrial byproducts into usable brick-making materials.
Technical Parameters
| Model |
Capacity |
Roller size |
Feeding size |
Roller gap |
Overall dimension |
Weight (t) |
Power (kW) |
| (m3/m) |
(mm) |
(mm) |
(mm) |
(mm) |
| GS1000x800 |
25-40 |
φ1000x800 |
≤25 |
1.5-3 |
6100x3900x1600 |
16.8 |
37+30 |
| GS1000x1000 |
30-50 |
φ1000x1000 |
≤25 |
1.5-3 |
6200x4200x1700 |
22.4 |
90+75 |
| GS1200x1000 |
30-55 |
φ1200x1000 |
≤25 |
1.5-3 |
7300x4300x1800 |
24.5 |
110+75 |
| GS1400x1200 |
40-60 |
φ1400x1200 |
≤25 |
1.5-3 |
7800x6500x2300 |
33 |
160+90 |
Why Choose BRICTEC Roll Crusher?
BRICTEC’s Roll Crusher is engineered for reliability, precision, and cost-effectiveness, making it an essential component in modern brick production lines. With a focus on durability and ease of operation, our equipment helps manufacturers achieve higher productivity with lower operational costs.
