BRICTEC Fuel Thermal Equipment Switchable Heavy Oil Burner For Kiln Temperature Control

Name: BRICTEC Fuel Thermal Equipment Switchable Heavy Oil Burner For Kiln Temperature Control
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: ASNG/2
Price: 8,965.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Model Number: ASNG/2

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 60 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                BRICTEC Thermal Equipment, Fuel Thermal Equipment, Switchable Heavy Oil Burner Temperature Control


Fuel Type:	Oil/gas	Each Burning Point Power:	40-70Kw
Heater Power:	1200W	Installation Method:	On The Kiln Roof
Condition:	New	Automatic:	Yes
Method:	Burner	Processing:	Brick Firing System
Raw Material:	Clay,Soil,Mud,Fly Ash	Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Heavy Oil Burner For Kiln Temperature Control

Fuel Type:	Oil/gas
Each Burning Point Power:	40-70Kw
Heater Power:	1200W
Installation Method:	On The Kiln Roof
Condition:	New
Automatic:	Yes
Method:	Burner
Processing:	Brick Firing System
Raw Material:	Clay,Soil,Mud,Fly Ash
Type:	Clay Brick Making Machine
Highlight:	Brick Making Machine Heavy Oil Burner For Kiln Temperature Control

BRICTEC Fuel Thermal Equipment Switchable Heavy Oil Burner For Kiln Temperature Control

BRICTEC Thermal Equipment Fuel Switchable Heavy Oil Burner for Kiln Temperature Control

Product Description

ASNG/2 burner is flexible to accommodate fuel type of both oil and gas (natural gas or LPG). It is equipped with two interfaces to support different fuel supplies with no need to change burners.Thus, fuel switching becomes very easy in this process. The burner is composed of two 1000L transfer tanks and heavy oil burning system and adopts electronic proportional valve, which can realize precise control, and make kiln reach preset temperate and keep constant. The heavy oil circulation pump is of Siemens brand, and the temperature controller is of OMRON brand.

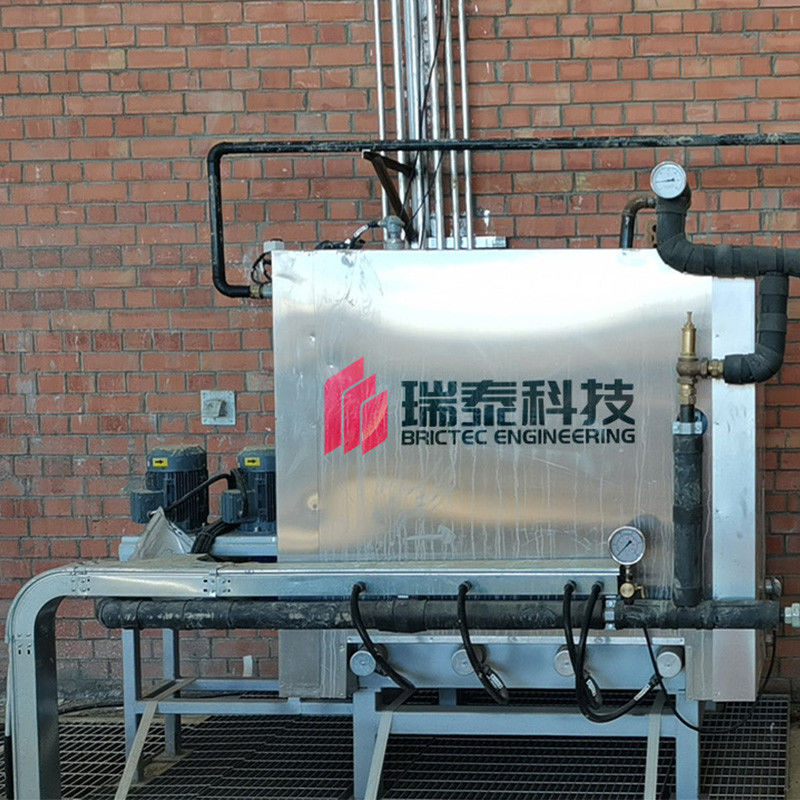

In the process of the burning system installation service, We will provide a service tank for daily use and position it next to the kiln.The function of this daily service tank is to accept the fuel coming from the main storage tank, heat it up and deliver it to the circulating pump while allowing excess fuel to flow back into the Daily service tank, maintaining continuous fuel flow and avoiding fuel flow not moving due to low temperature. All the daily service tanks are equipped with heating components, safety floaters and other accessories to ensure safety and high efficiency.

Techinical Parameters

ASNG/2	Oil	Gas
Pipe fuel pressure	/	0.2÷2bar
Fuel type	All types including HFO, LFO, crude oil, and biofuels	All types including natural gas,butane and propane
Working method	Stepless speed change through frequency converter	ON-OFF
Each burning point power	40-70Kw	40-70Kw
Heater power	1200W	/
Installation method	On the Kiln roof	On the Kiln roof

Daily oil service tank technical data
Capacity	1000L
Heating Power	15000W
Safety Floater	Minimum level control(Submerged type)
