Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles

Name: Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: VP40/45/50/56/60
Price: 101.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brictec

Certification: CE

Model Number: VP40/45/50/56/60

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $71,500.00-131,900.00

Packaging Details: Customized

Delivery Time: 80 days

Payment Terms: L/C, T/T

Supply Ability: Customized

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Brick Making Machinery Vacuum Extruder, Dual-stage Vacuum Extruder, Medium-scale Vacuum Extruder


Model:	VP40/45/50/56/60	Control Mode:	PLC Length Control
Package:	Container	Customization:	Available
Brick Type:	Hollow Or Solid	Origin:	China
Name:	Brick Making Machinery	Material:	Clay Shale Fly Ash
Voltage:	380V

Model:	VP40/45/50/56/60
Control Mode:	PLC Length Control
Package:	Container
Customization:	Available
Brick Type:	Hollow Or Solid
Origin:	China
Name:	Brick Making Machinery
Material:	Clay Shale Fly Ash
Voltage:	380V

Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles

Product Description

Brictec offers four types of clay fired brick extruders: Large-scale Dual-Stage Vacuum Extruder, Medium-scale Dual-Stage Vacuum Extruder, Compact Extruder, and Vertical Screw Extruder. Each model of the clay fired brick extruder has different performance parameters. For details, please refer to the specifications table on the product page or consult with the account manager.
Equipment Introduction:

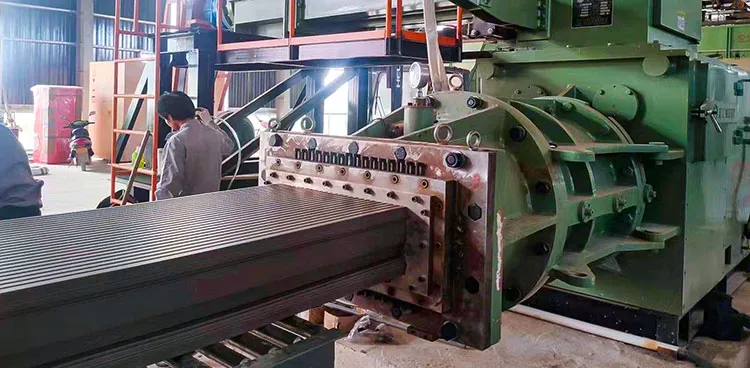

The vacuum brick extruder is the core equipment in clay brick production, primarily used to extrude mixed clay materials under high pressure while applying vacuum treatment to enhance the compactness and strength of the green body. Its performance directly impacts brick quality, production efficiency, and the overall operational stability of the entire plant.
Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 1

Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 1

Features of Vacuum Extruder:
(1)Vacuum De-airing System
Prior to extrusion, a vacuum pump (typically achieving -0.092 to -0.098 MPa) removes air from the clay, reducing body porosity and enhancing density. This prevents cracking, delamination, or explosion during drying and firing.
(2)High-Pressure Extrusion System
Utilizes a spiral auger or two-stage extrusion mechanism to ensure homogeneous clay compaction. Extrusion pressure typically ranges from 2.5 to 4.5 MPa, accommodating clay materials of varying hardness.
(3) Adjustable Mold System

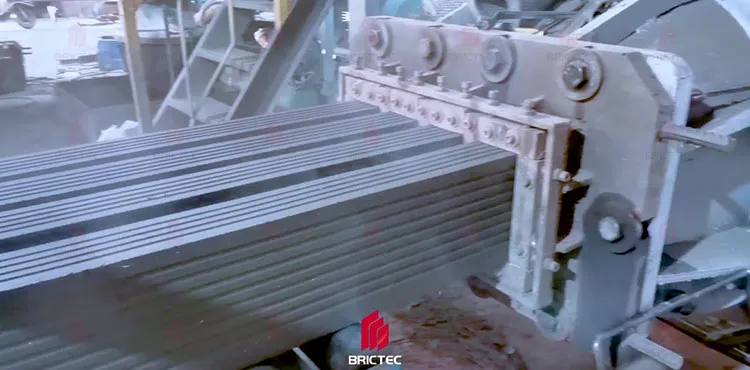

The mold determines brick dimensions and profiles (e.g., solid, hollow, or perforated bricks). High-performance extruders feature quick-change mold systems to minimize downtime and enhance production flexibility.
(4) Wear-resistant Materials & Low-maintenance Design

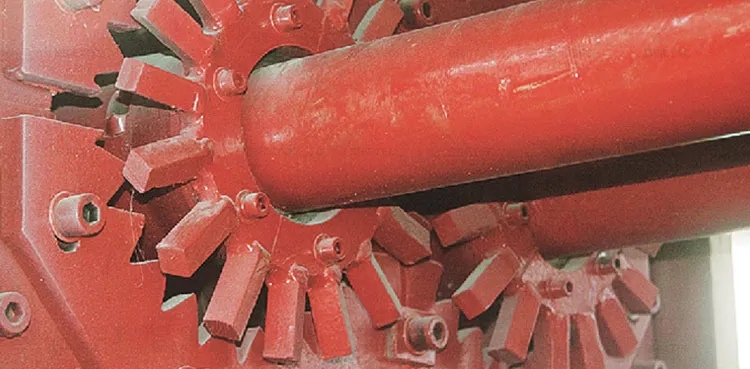

Critical components (auger, liner, extrusion head) utilize high-chromium alloy steel or tungsten carbide (WC) coatings for extended service life. Premium models incorporate hydraulic clearance adjustment to automatically compensate for wear, maintaining stable extrusion pressure.
(5) Automated Control
Modern vacuum extruders feature PLC-controlled systems monitoring vacuum level, extrusion pressure, and motor load for intelligent adjustment. Advanced models support remote monitoring for predictive maintenance and fault alerts.
Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 2

Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 2

Functions of Vacuum Extruder:

1. Material Processing: Mixes and extrudes clay (may include shale or coal gangue).

2. De-airing: Removes air bubbles to enhance strength.

3. Shaping: Forms bricks via dies (solid/hollow blocks, etc.).

4. Cutting: Some models integrate auto-cutting for brick lengths.

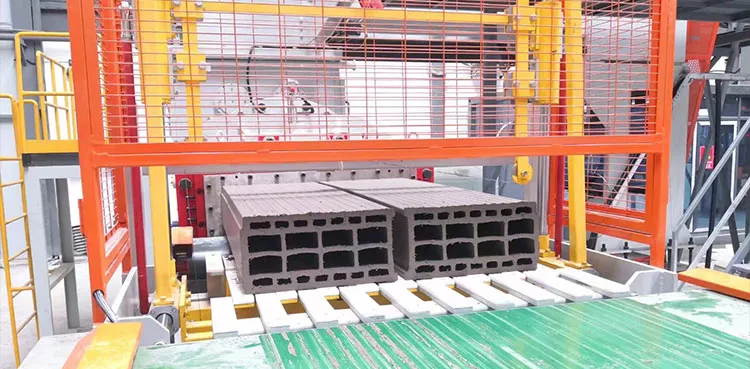

5. Conveying: Transfers bricks to drying or stacking systems.
Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 3

Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 3

Main technical parameters:

Model	Upper stage		Lower stage		Maximum extrusion pressure (MPa)	Capacity (m³/h)	Weight (t)	Dimension (mm)
Model	Screw diameter (mm)	Power (kW)	Screw diameter (mm)	Power (kW)	Maximum extrusion pressure (MPa)	Capacity (m³/h)	Weight (t)	Dimension (mm)
VP-40/40-S	Φ400	30-45	Φ400	55-75	3.5	7-20	10.5	6200×2400×2100
VP-45/40-S	Φ400	30-55	Φ450/400	75-90	3.5	7-20	11.5	6000×2500×2200
VP-50/50-S	Φ500	55-90	Φ500	90-160	3.5	20-40	14	5700×4500×2600
VP-56/45-S	Φ400	45-55	Φ560/450	75-90	4.5	7-35	14.5	5700×2400×2600
VP-56/50-S	Φ500	55-90	Φ560/450	75-132	3.5	15-40	15	7000×5500×2600
VP-60/60-S	Φ500	55-90	Φ580	132-160	3.0	25-45	27	7400×5500×2900

Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 4

Importance of High-Quality Extruders:
(1) Improves Brick Quality, Reduces Waste: Low-end extruders cause cracks, deformation, weak bricks (waste rate >10%). High-end machines ensure dense, precise bricks (waste rate <2%).
(2) Boosts Efficiency, Lowers Energy Use:Reliable extruders enable 24/7 production with minimal downtime. Optimized pressure reduces power consumption (e.g., VFD saves 20%+)..
(3) Extends Lifespan, Cuts Maintenance:Cheap extruders wear fast (auger replacement every 3-6 months). Premium models last 1-3 years, reducing part/labor costs.
(4) Adapts to Raw Materials:Handles clay with 14-22% moisture, even mixed with shale/coal gangue. Quick mold changes enable diverse products (solid/perforated bricks).
(5) Reduces Issues in the Following Process:Better extrusion minimizes drying cracks, firing deformations.
Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 5

Brick Making Machinery Medium-scale Dual-Stage Vacuum Extruder for Clay Bricks And Tiles 5

The vacuum extruder is the "heart" of a brick plant., Choosing a reliable, wear-resistant, automated machine ensures higher quality, lower costs, and ong-term competitiveness.
