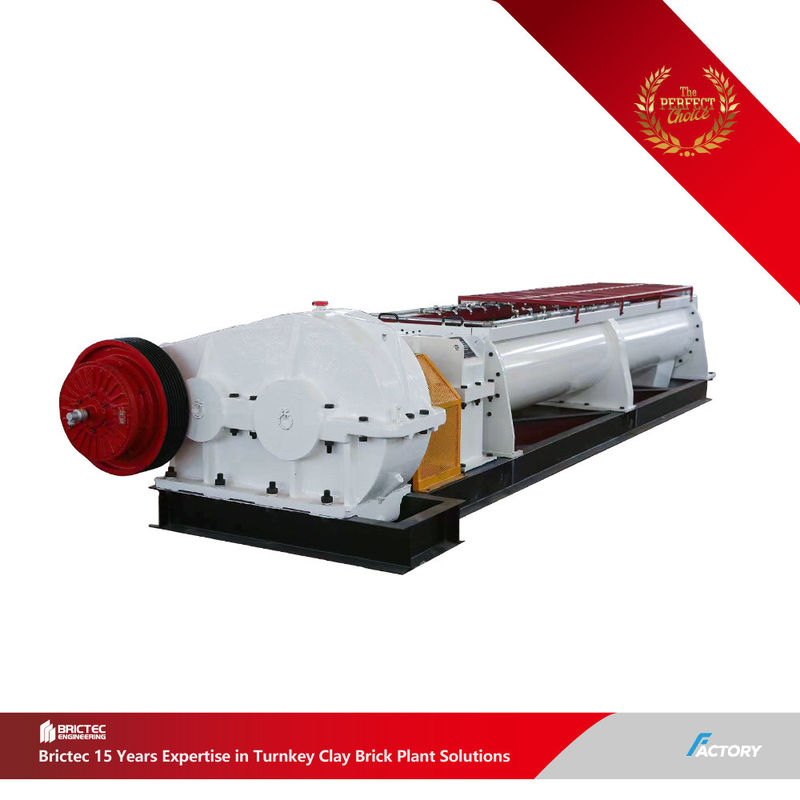

$High Efficiency Double-Shaft Mixer for Refractory Materials$

High Efficiency Double-Shaft Mixer for Refractory Materials

Name: High Efficiency Double-Shaft Mixer for Refractory Materials
Brand: Xi'an Brictec Engineering Co., Ltd.
SKU: SJ3600 SJ4000 SJ4500
Price: 31,400.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRICTEC

Certification: CE, ISO

Model Number: SJ3600 SJ4000 SJ4500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 13800-49000 US$

Delivery Time: 60

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

High Efficiency Double-Shaft Mixer for Refractory Materials

Equipment Introduction:

The Twin-Shaft Mixer is a core mixing equipment in clay brick production. It utilizes two parallel shafts with paddles (or blades) to homogenize raw materials (e.g., clay, coal gangue, water). Designed for high-plasticity materials, it ensures uniform mixing for subsequent extrusion molding.

$High Efficiency Double-Shaft Mixer for Refractory Materials 0$

Technical Data:

Model	Capacity	Length of Mixing Chamber	Mixing Shaft Center Distance	Weight	Dimension	Power
SJ3600	15-25 m³/h	3600 mm	360 mm	5.5 t	52002400900	37
SJ4000	30-40 m³/h	4000 mm	400 mm	7.5 t	620028001100	55
SJ4500	50-80 m³/h	4500 mm	540 mm	11.5 t	700034001600	90/110

$High Efficiency Double-Shaft Mixer for Refractory Materials 1$

Features:

1. Counter-Rotating Shafts: Two shafts rotate oppositely for intense shearing and convective mixing.

2. Adjustable Speed: RPM typically 15-30, adaptable to material plasticity.

3. Wear-Resistant: Paddles and liners made of high-chromium alloy or NM360 steel.

4. Sealed Design: Dust-proof and leak-proof, minimizing clay adhesion.

Function:

Mixes clay, lean materials (e.g., coal gangue), and water into a uniform plastic state, providing homogeneous material for extrusion. Critical for brick strength and kiln stability.

Advantages:

1. Mixing uniformity >95%, far superior to single-shaft mixers.
2. No jamming even with high-viscosity materials.
3. Easy maintenance with replaceable paddles.

$High Efficiency Double-Shaft Mixer for Refractory Materials 2$

The mixer focuses solely on blending, while the mixer-extruder combines mixing and extrusion, ideal for compact production lines.

$High Efficiency Double-Shaft Mixer for Refractory Materials 3$

Key Technical Terms:

Mixer-Extruder

Intensive Mixing

High-Chromium Alloy Paddles

$High Efficiency Double-Shaft Mixer for Refractory Materials 4$

$High Efficiency Double-Shaft Mixer for Refractory Materials 5$

$High Efficiency Double-Shaft Mixer for Refractory Materials 6$
