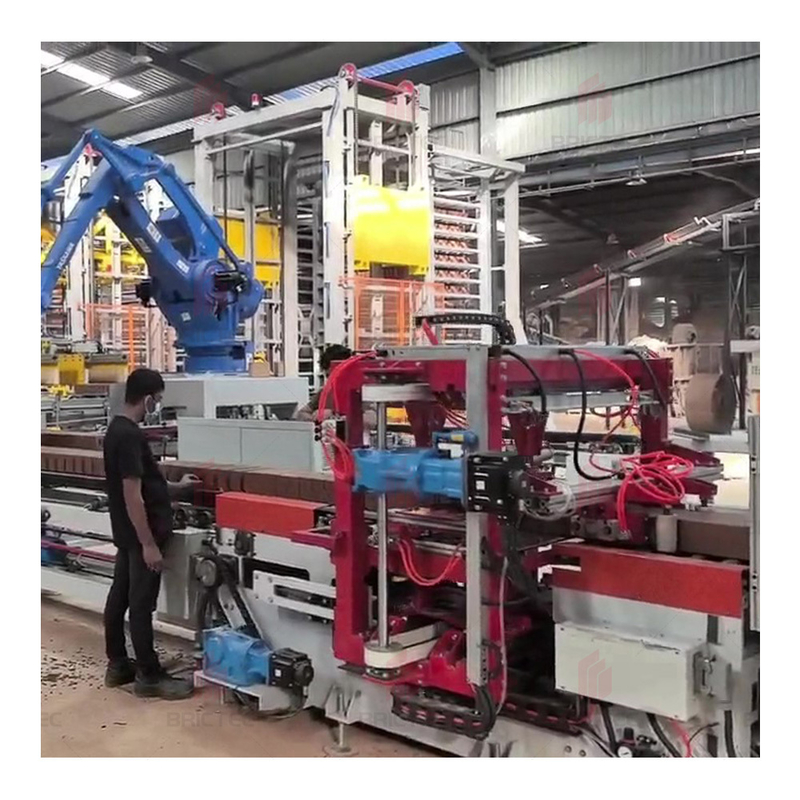

1 Equipment Introduction

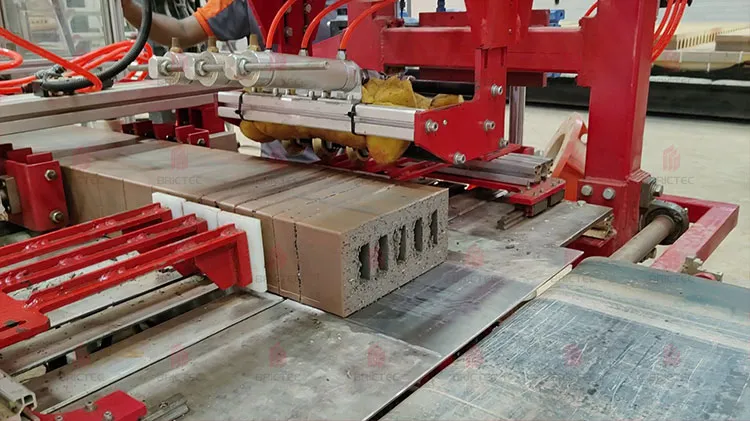

The chamfered wire-cutting machine is a hybrid unit that integrates a chamfering knife holder into a conventional wire cutter, performing both length-cutting and 45°/30° chamfering in one stroke for wet green bricks of clay, shale or coal gangue fired bricks.
2 Cutting Features
• Chamfering and cutting are completed in one pass without secondary handling;
• Adjustable chamfer angle from 45° to 90°;
• Individual wire quick-change on breakage, no shutdown;
• PLC servo synchronization, cutting accuracy ≤ ±1 mm.
3 Cutting Advantages
• One-step chamfering improves stacking and laying efficiency;
• Reduces corner chipping by ≥80 %;
• Modular blade holder, 10 min change-over;
• Eliminates manual edge trimming, overall cost reduced by ~15 %.

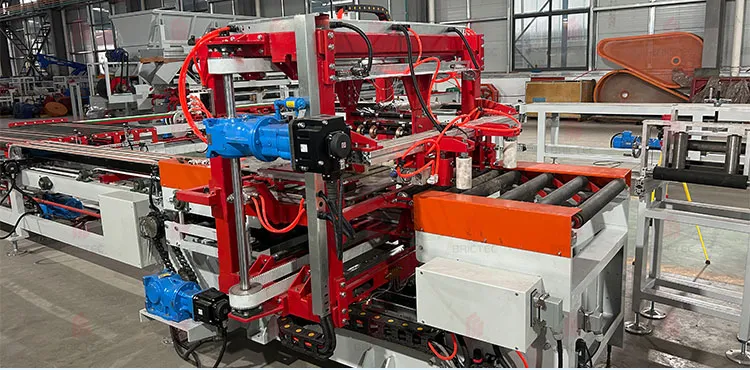

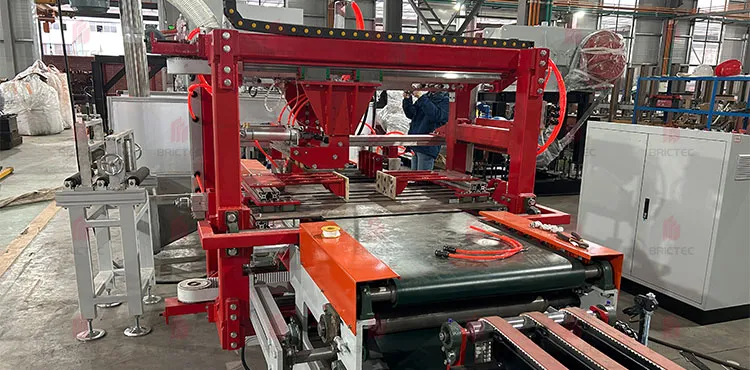

4 Machine Construction
• High-rigidity twin-screw frame ensures cutting stability;

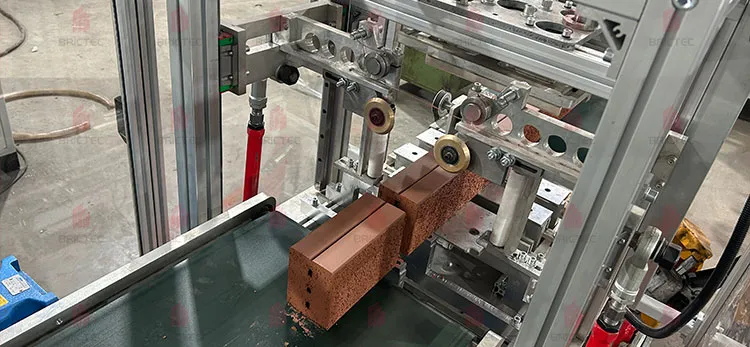

• Swiveling chamfer knife seat with electric angle adjustment;
• Snap-in wire assembly for easy maintenance;
• Stainless steel water-cooling trough suppresses dust and prolongs wire life.
5 Specifications
| Item |
Value |
| Max cutting width |
1,200 mm |
| Cutting frequency |
15-45 cuts/min (frequency conversion) |
| Chamfer angle |
30°-90° (Adjustable) |
| Installed power |
11 kW |
| Applicable bricks |
Solid Bricks, Perforated Bricks, Hollow Bricks |
6 Benefits of Chamfered Bricks
• Rounded edges make handling and construction safer;
• Mortar joints are fuller and neater, reducing subsequent plastering;
• Enhances overall wall strength by lowering corner stress concentration;
• Meets modern architectural demands for fair-faced or decorative walls.
